DBL1200HV

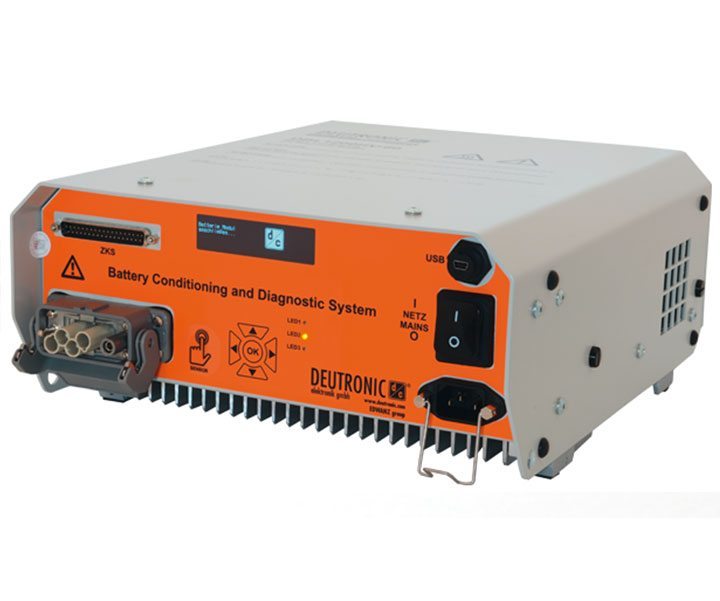

Diagnostic and conditioning system for Electric Mobility applications

As a result of various innovations in battery technology, new requirements for the charging technology occur. Newly developed lithium ion high-voltage batteries for electric and hybrid vehicles have entirely new charging characteristics and bring much higher demands on monitoring and safety. To meet these requirements, Deutronic has developed the Battery Conditioning and Diagnostic System for high voltage battery modules DBL1200HV-60.
This allows a user the conditioning of a single battery module to a desired charging height. To ensure the safety of the module during the conditioning process, relevant parameters such as temperatures and cell voltages are permanently monitored and displayed in case of error. The module conditioning is recommended in repository to extend the lifetime of an unused battery module. Furthermore, the exchange of individual battery modules of an entire high-voltage battery system is made possible by the module-related treatment.

The diagnostic and conditioning system for Electric Mobility applications must be planned and implemented according to customer specifications depending on the used high-voltage modules.

  • Battery diagnostic system
  • Extensive protection functions and self-protection functions
  • Short circuit and reverse polarity protection
  • Protection against defective batteries
  • Reliable sparking suppression
  • Comfortable menu navigation / charging parameter configurable
  • Built-in communication interface
  • Mini-USB port for firmware update
  • 37-pin signal interface for cell contact plug
  • Sealed housing, protected against internal pollution
  • Cell voltage monitoring
  • Status indication via display and high power LEDs
  • Menu navigation: English, French, German, Italian, Spanish
  • Accessories: e.g. mains cable, wall mount adapter etc.
  • Option: Customized charging parameters
  • Option: Regeneration charging for deep discharged batteries
  • Electrical safety EN61010-1, EN60335-1, EN60335-2-29, UL61010-1,
    CAN/CSA-C22.2 No. 61010-1-12
  • Utilized and approved by first-class automotive manufacturer

Specifications

TypeEingang / Input [V]Ausgang / Output [V]Ausgang / Output [A]Kat. Nr.
DBL1200HV-60100-240VAC25-67,2VDC20Anach Projektierung / after project planning

Download

FilelableFile01
DatenblattDBL1200HV_db
BedienungsanleitungDBL1200HV_bd
ZubehörkatalogCharging Technology-Zubehör

Download

FilelableFile01
Data sheetDBL1200HV_db
ManualDBL1200HV_man
Accessories catalogueCharging Technology-Accessories
