Environmental laboratory

Equipment and technical possibilities of our environmental laboratory

Hightech electronic products need to function even under adverse environmental conditions. In order to meet these requirements, Deutronic has a modern and well-appointed environmental laboratory. We can test products under adverse environmental conditions from the product development to the validation.

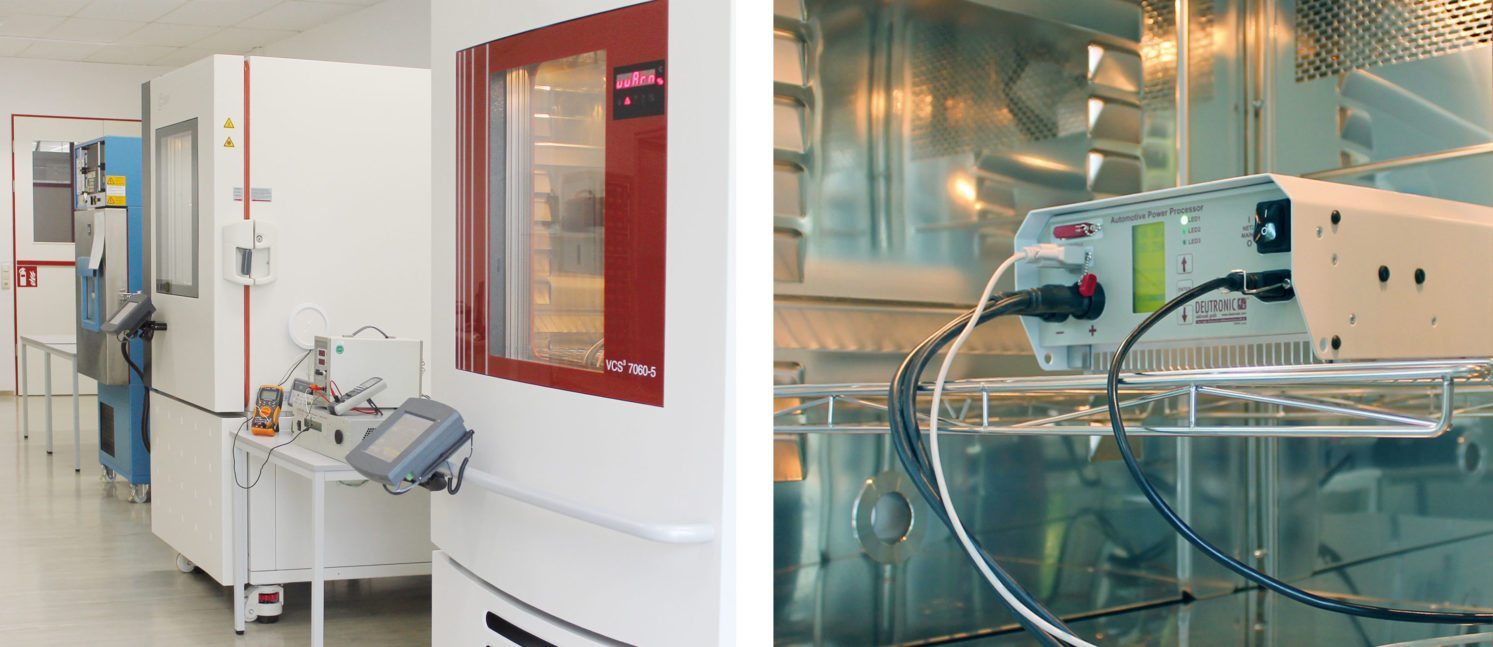

Climatic chamber

Parameter Weiss 305 SB/+10 IU/40 DU Vötsch C600, 40 Vötsch VCS³7060-5
Test room capacity [l] 301 600 600
Dimensions test room width [mm] 540 800 800
Dimensions test room depth [mm] 820 800 800
Dimensions test room height [mm] 680 950 950
Temperature range [°C] -40 – +180 -40 – +180 -72 – +180
Temperature changing speed heat [K/min] 2,0 2,2 6,0
Temperature changing speed cooling [K/min] 2,5 2,2 6,0
Heat compensation [W] at +20°C [only temperature mode] 1000 2000 5000
Moisture range [% r.F.] 15 – 95 20 – 90 10 – 98
Water dewpoint [°C] +10 – +40 +4 – +92 -3 – +94

3-phase power system simulation

Hersteller et System
Type EAC-S 4000
Output voltage range [VAC] per phase 0–500
Output voltage range [VDC] 0-700
Output power range [A] 0-18
Output frequency [Hz] 0,1-500
Programming accuracy (Ua) [V] 0,1
Programming accuracy (Ia) [A] 0,01
Programming accuracy frequency [Hz] 0,1
Programming accuracy activation phase [°] 0,1
Isolation primary/earth [VDC] 2150
Isolation OUT/earth [VDC] 500
Isolation primary/secondary [VDC] 3000
Static voltage regulation [%] 0,1
Static current regulation [%] 0,1
Control time [periods] 5
Distortion factor [%] at 50Hz 0,3

Additionally different data loggers are available which can be integrated into Deutronics own analytical tool. A supplementary chamber can be added to the climatic chamber in order to ensure that the object of measurement won’t get cooled due to the moving air inside the climatic chamber.
Furthermore it is also possible to accompany external measurements or fully implement those.

Current sink Deutronic DEL-Series

Manufacturer Deutronic Elektronik GmbH
Type DEL2800
 Input voltage (measuring range) [VDC] 0 – 80
 Input voltage (load range) [VDC] 3,5 – 60
 Load current [A] 0,5 – 200
 Measurement accuracy [%] ±0,3
 Control accuracy ±1% max. ±1,0A
Resolution (measuring range) [mA] 10
Resolution (set point) [mA] 50
Resistance range [Ω] 0,05 – 0,5 0,51 – 5,0 5,1 – 50
Resolution [mΩ] 1 10 100
Accuracy for loads of UIN=
10–100% und ILast>1A
±3% ±5% ±10%
