DVC2503

  • 2503W
  • Power adaptation possible through modularity in 2.5 kW steps (up to 7.5 kW)
  • Improved handling through master-slave control
  • Coverage of a wide range of applications due to the large input voltage range
  • Flexible range of applications due to the compact design
  • Desired parameterization via CAN interface (CAN2.0A, J1939)
  • Reduced integration and operating costs



DVC1903

  • 1680W (3840W boost)
  • Wide range input
  • High efficiency – typ. 95%
  • Short-circuit, no load and over temperature protection
  • IP-protection class IP54
  • Parallel connectable
  • Galvanical isolated switching regulator
  • Particularly flat and compact design
  • On request: Changed input voltage range

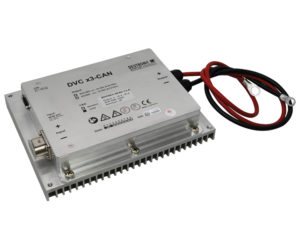

DVC1903-24/48-24-CAN

  • 1920W
  • Effective input current control for operation on fuel cells
  • Coverage of portable, mobile and stationary fuel cell applications
  • Wide range input ensures high compatibility
  • High efficiency guarantees efficient operation

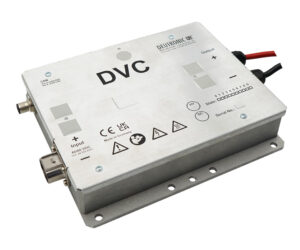

DVC953

  • 1280W
  • Wide range input
  • Galvanical isolated switching regulator
  • Power range up to 1280W
  • High efficiency – up to – typ. 93%
  • Short-circuit, no load and over temperature protection
  • IP-protection class IP67
  • Parallel connectable
  • Particularly flat and compact design
  • CAN J1939 (controllable output voltage and current)

DVC853

  • 966W (2208W boost)
  • Wide range input
  • High efficiency – typ. 92%
  • Short-circuit, no load and over temperature protection
  • IP-protection class IP54
  • Parallel connectable
  • Galvanical isolated switching regulator
  • Particularly flat and compact design
  • On request: Changed input voltage range

DVC453

  • 450W
  • Wide range input
  • High efficiency – typ. 92%
  • Short-circuit, no load and over temperature protection
  • IP-protection class IP65
  • Parallel connectable
  • Galvanical isolated switching regulator
  • Particularly flat and compact design
  • On Request: Extended input voltage range

DVC153

  • 160W
  • Wide range input
  • High efficiency – typ. 90%
  • Short-circuit, no load and over temperature protection
  • IP-protection class IP65
  • Parallel connectable
  • Galvanical isolated switching regulator
  • Particularly flat and compact design
  • On request: Changed input voltage range

DVCH1503-400

  • 1500W
  • Wide range input
  • High efficiency – typ. 94%
  • Short-circuit, no load and over temperature protection
  • IP-protection class IP65, IP67, IP6K9K
  • Parallel connectable
  • Galvanical isolated switching regulator
  • HV-Interlock
  • CAN (controllable output voltage)
  • E1 approval for car

DVCH1503-700

  • 1500W
  • Wide range input
  • High efficiency – typ. 94%
  • Short-circuit, no load and over temperature protection
  • IP-protection class IP65, IP67, IP6K9K
  • Parallel connectable
  • Galvanical isolated switching regulator
  • HV-Interlock
  • CAN (controllable output voltage)

DVCH3003-400

  • Power range 3000W
  • Available CAN protocols: Standard-CAN and J1939
  • Protection classes IP65, IP67 and IP6K9K
  • Contact cooled, no extensive cooling concept in the vehicle required
  • Customized changes possible through modular design
  • HV connection cable or supplementary heat sinks available as accessories

DVCH3003-700

  • 3000W
  • Wide range input
  • High efficiency – typ. 94%
  • Short-circuit, no load and over temperature protection
  • IP-protection class IP65, IP67, IP6K9K
  • Parallel connectable
  • Galvanical isolated switching regulator
  • HV-Interlock
  • CAN (controllable output voltage)

DVC500

  • 500 Watt
  • Protection against unfavourable environmental conditions
  • DC/DC wide range input
  • Electrical safety: EN1175, EN61204-7
  • EMC: Emission: EN12895, EN61204-3 Class A
    Interference immunity: EN12895, EN61204-3 Class A
  • Regulated output, very high efficiency
  • Short-circuit / No-load protection
  • Parallel connectable (Option: Smart output characteristic)
  • Rugged construction / potted device
  • Designed for the use in rough environment
  • Over Temperature protection

DVC301

  • 300 Watt
  • Wide range of applications due to numerous voltage variants
  • Optimized redesign of the proven DVC251 converter
  • Ideal for applications such as logistics, industrial trucks, railroad applications or electric vehicles
  • Highest safety due to IP67 degree of protection according to EN 60529
  • Protection against unfavourable environmental conditions

DVC251

  • 250 Watt
  • Protection against unfavourable environmental conditions
  • DC/DC wide range input
  • Filtered against vehicle on-board disturbances
  • Galvanic separation 1,5kV (500V at 12/24VDC input voltage)
  • Electrical safety: EN61204-7
  • EMC: EN61204-3
  • Regulated output, high efficiency
  • Short-circuit / No-load protection
  • Over Temperature protection
  • Rugged construction / potted device

DVC150

  • 150 Watt
  • Protection against unfavourable environmental conditions
  • DC/DC wide range input
  • Filtered against vehicle on-board disturbances
  • Galvanic separation 1,5kV
  • Electrical safety: EN61204-7
  • EMC: EN61204-3
  • Regulated output, very high efficiency
  • Short-circuit / No-load protection
  • Over Temperature protection
  • Rugged construction / potted device

DVC125

  • 125 Watt
  • Protection against unfavourable environmental conditions
  • DC/DC wide range input
  • Filtered against vehicle
    on-board disturbances
  • Galvanic separation 1,5kV
  • Electrical safety: EN61204-7
  • EMC: EN61204-3
  • Regulated output, very high efficiency
  • Short-circuit / No-load protection
  • Over Temperature protection
  • Rugged construction / potted device

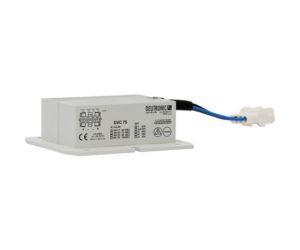

DVC75

  • 75 Watt
  • Protection against unfavourable environmental conditions
  • DC/DC wide range input
  • Filtered against vehicle
    on-board disturbances
  • Galvanic separation 1,5kV
  • Electrical safety: EN61204-7
  • EMC: EN61204-3
  • Regulated output, very high efficiency
  • Short-circuit / No-load protection
  • Over Temperature protection

DR350

  • 350 Watt
  • Regulated output
  • Input filter versus disturbances of thyristors drives
  • Rugged construction
  • Parallel connectable without control lead
  • DC/DC wide range input
  • Non-isolated output
  • Efficiency up to 96%

DR160

  • 160 Watt
  • Solid construction
  • Over temperature protection
  • Input filter versus disturbances of thyristors drives
  • Regulated output
  • LED Display
  • DC/DC wide range input
  • Non-isolated output

DR150N

  • 150 Watt
  • DC/DC wide range input
  • Regulated output
  • Input filtered against interference from thyristor vehicle drives
  • Solid construction
  • Parallel connectable without control lead
  • Efficiency up to 95%
  • Non-isolated output

DR125N

  • 125 Watt
  • DC/DC wide range input
  • Regulated output
  • Input filtered against interference from thyristor vehicle drives
  • Solid construction
  • Parallel connectable without control lead
  • Efficiency up to 95%
  • Non-isolated output

DR100N

  • 100 Watt
  • DC/DC wide range input
  • Regulated output
  • Input filtered against interference from thyristor vehicle drives
  • Solid construction
  • Parallel connectable without control lead
  • Efficiency up to 95%
  • Non-isolated output
  • FE-Version: Connector horizontal (see fig. 6.2)

DR25N

  • 25 Watt
  • DC/DC wide range input
  • Regulated output
  • Input filtered against interference from thyristor vehicle drives
  • Solid construction
  • Parallel connectable without control lead
  • Efficiency up to 95%
  • Non-isolated output
  • FE-Version: Connector horizontal

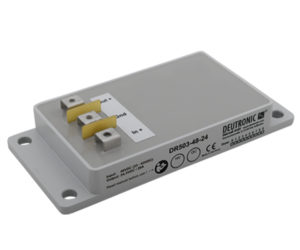

DR503

  • Isolation switch as protection measure
  • Parallel connectable without control line
  • Typical efficiency of 96 %
  • Short-circuit / No-load protection, over temperature protection
  • Customized changes possible

DR183

  • Regulated output
  • Extremely small and robust
  • Typical efficiency of 96 %
  • Switchable output
  • Customized changes possible

EHB200W

  • 200 Watt
  • Efficiency to 89%
  • EN60950
  • Input under-voltage protection
  • Over temperature protection
  • Over voltage/current protection
  • 132-200W isolated output
  • 4:1 input range

EHB150

  • 150 Watt
  • 2:1 input range
  • Isolated output
  • Efficiency to 85%
  • EN60950, CE
  • 500kHz switching frequency
  • Continuous short circuit protection
  • Input/output isolation 1500VDC min.
  • Five-sided metal case

EHB100

  • 100 Watt
  • Efficiency up to 85%
  • 500kHz switching frequency
  • Continous short circuit protection EN60950, CE
  • Five-sided metal case
  • 100W isolated output
  • 2:1 input range

EHB75W

  • 75 Watt
  • Regulated output
  • Efficiency up to 84%
  • 300kHz switching frequency
  • Input/ output isolation 1500VDC min.
  • EN60950, CE
  • Continuous short circuit protection
  • Five-sided metal case

EHB75

  • 75 Watt
  • Efficiency up to 85%
  • 300kHz switching frequency by single-version
  • EN60950, CE
  • 400kHz switchin frequency by dual-version
  • Continuous short circuit protection
  • Input/ output isolation 1500VDC min.
  • Five-sided metal case
  • 75W isolated output

EHB50W

  • 50 Watt
  • Efficiency to 84%
  • EN60950, CE
  • 300kHz switching frequency
  • Input/output isolation 1500VDC min.
  • 25-50W isolated output
  • 4:1 input range
  • Continous short circuit protection

EHB50

  • 50 Watt
  • Efficiency up to 85%
  • EN60950, CE
  • 300kHz switching frequency
  • Input/output isolation 1500VDC min.
  • 50W isolated output
  • 2:1 input range
  • Continous short circuit protection

E30ZW

  • 30 Watt
  • Efficiency < 85%
  • Short circuit protection
  • Input/output isolation 500VDC
  • Six-sided shield
  • PI-Input filter
  • Wide range input 2:1

E20UW

  • 20 Watt
  • Controlled
  • EN55011 Class A
  • Continuous short circuit protection
  • Input/output isolation 1500VDC min.
  • Output ± 10% adjustable
  • Dual version: Minimal load ca. 10%
  • Wide range input 4:1

E15ZW

  • 15 Watt
  • Wide range input 2:1
  • PI-Input filter
  • Continuous Short Circuit Protection
  • Input/output isolation
    500VDC min.
  • Noise suppression EN55011-A
  • Dual version
  • No minimum load required

E10ZW

  • 10 Watt
  • Continuous short circuit protection
  • Input/output isolation
    500VDC min.
  • Noise suppression EN55011-A
  • Dual Version: Minimal load
    ca. 10%
  • Wide range input 2:1
  • PI-Input filter

E10UW

  • 10 Watt
  • Continuous short circuit protection
  • Input/output isolation
    500VDC min.
  • Noise suppression EN55011 class A
  • Dual Version: Minimal load
    ca. 10%
  • Wide range input 4:1
  • PI-Input filter

E7,5DW

  • 7,50 Watt
  • PI-Input filter
  • Efficiency up to 83%
  • Input/output isolation 1500VDC min.
  • Short circuit protection
  • 24-Pin DIP Package
  • Wide range input 2:1
  • Dual Version: Minimal load ca. 10%

E6W

  • 6 Watt
  • 2″x2″ case
  • PI-Input filter
  • Efficiency up to 82%
  • Operat. Temp. Range -25°C~+71°C
  • Input/output isolation 500VDC min.

E6UW

  • 6 Watt
  • Input/output isolation 1500VDC min.
  • Short circuit protection
  • Dual Version: Minimal load ca. 10%
  • Option H 3kV
  • Wide range input 4:1
  • Footprint 24-pin DIL

E6DW

  • 6 Watt
  • Footprint 24-pin DIL
  • Input/output isolation 500VDC min.
  • Short circuit protection
  • Dual Version: Minimal load ca. 10%
  • Wide range input 2:1
  • PI-Input filter
  • Efficiency up to 82%

E3UW

  • 3 Watt
  • Input/output isolation 500VDC min.
  • Short circuit protection
  • Dual Version: Minimal load ca. 10%
  • Option H: 3kV
  • Wide range input 4:1
  • Footprint 24-pin DIL

E3DW

  • 3 Watt
  • Efficiency up to 80%
  • Footprint 24-pin DIL
  • Isolation 500VDC min.
  • Short circuit protection
  • Option H: 3kV
  • PI-Input filter
  • Wide range input 2:1

E1Z regulated

  • 1 Watt
  • Isolation 1000VDC min.
  • Continuous short circuit protection
  • UL94-0 Case material
  • Slight ripple & noise
  • Wide range input 2:1
  • 7-pin SIL package

E1Z unregulated

  • 1 Watt
  • Isolation 1000VDC min.
  • Operating temp. up to +70°C
  • Option/2: -45°C up to +85°C
  • 7-pin SIL package
  • UL 94V – O package material
  • Efficiency <75%, Option H 70% typ.

E1K

  • 1 Watt
  • Isolation 1000VDC min.
  • Operating temp. up to +70°C
  • Option/1: -25°C up to +85°C
  • Option/2: -45°C up to +85°C
  • High efficiency
  • 4-pin SIL package
  • UL 94V-0 Package Material

E0,25K

  • 0,25 Watt
  • Operating temp. up to +70°C
  • Option/1: -25°C up to +85°C
  • Option/2: -45°C up to +85°C
  • Isolation 1000VDC
  • High efficiency
  • 4-pin SIL package
  • UL 94 V-0 Package Material

EDR

  • 6 Watt
  • Footprint 24-pin DIL
  • Regulated outputs
  • Over current protection
  • Non-isolated outputs
  • 6-24W outputs
  • Input LC filter

E-TOP15DC 15 WATT

  • For the use in switch cabinets, clip fastening for DIN rail
  • EN61204-7, CE
  • Efficiency up to 82%
  • Galvanic separation 500VDC
  • EN61204-3

Mating connector DR/DVC series

  • For the device types:
    DR25N, DR100(N), DR125(N), DR150N, DVC75, DVC100, DVC125, DVC150
  • Scope of delivery:
    4 pole MATE-N-LOK housing
    4 crimp contacts (Socket version for cable cross-section 1.5–2.5 mm)

Mating connector DR350

  • For the device type:
    DR350
  • Scope of delivery:
    4 pole MATE-N-LOK housing
    4 crimp contacts (Socket version for cable cross-section 3–6 mm)

Mating connector DVC250/251

  • For the device types:
    DVC250, DVC251, DVC301
  • Scope of delivery:
    6 pole MATE-N-LOK housing
    6 crimp contacts (Socket version for cable cross-section 1.5–2.5 mm)

Mating connector DVC250/251 pre-assembled

  • For the device types:
    DVC250, DVC251, DVC301
    1 m cable length
  • Scope of delivery:
    6 pole MATE-N-LOK mating connector and 1 m connection cable as single strands, cable ends open (with ferrules)

Mating connector DVC153/DVC453

  • For the device types:
    DVC153, DVC453
  • Scope of delivery:
    1 x mating connector
    6 x contact pins
    6 x gasket

Mating connector DVC453-48/80 pre-assembled

  • For the device type:
    DVC453-48/80-24
    3 m cable length with mating connector TE Connectivity AMP
  • Version:
    With single strands 2.5 mm²
    With sheathed cable Ölflex Heat 180 SiHF 7G2.5

Mating connector DVC953/DVC2503 pre-assembled

  • For the device types:
    DVC953, DVC2503
    2 m cable length
  • Scope of delivery:
    Power Lok connection
    Twin cable Ölflex 2 x 6 mm²
    Open cable ends

Communication mating connector DVCHx3

  • For the device types:
    DVCHx3
  • Scope of delivery:
    1 x 14 pole car connector TE Ampseal
    14 x crimp contacts for connector TE Ampseal

HV mating connector DVCHx3 pre-assembled

  • For the device types:
    DVCHx3
    5 m cable length
  • Scope of delivery:
    2 pole HV connector AMPHENOL
    Excel Mate Eco HVSL282 06 2 A 104
    HV cable (4 mm², shielded single wires)

HV mating connector DVCHx3

  • For the device types:
    DVCHx3
  • Scope of delivery:
    2 pole HV connector AMPHENOL
    Excel Mate Eco HVSL282 06 2 A 104

Application specific cooling systems

  • For DVCHx3 units
    Heat sink incl. mounting plate and fixing material for mounting
    lengthwise / crosswise
  • For DVCx3 units
    incl. fixing material for mounting
    crosswise

Applications
