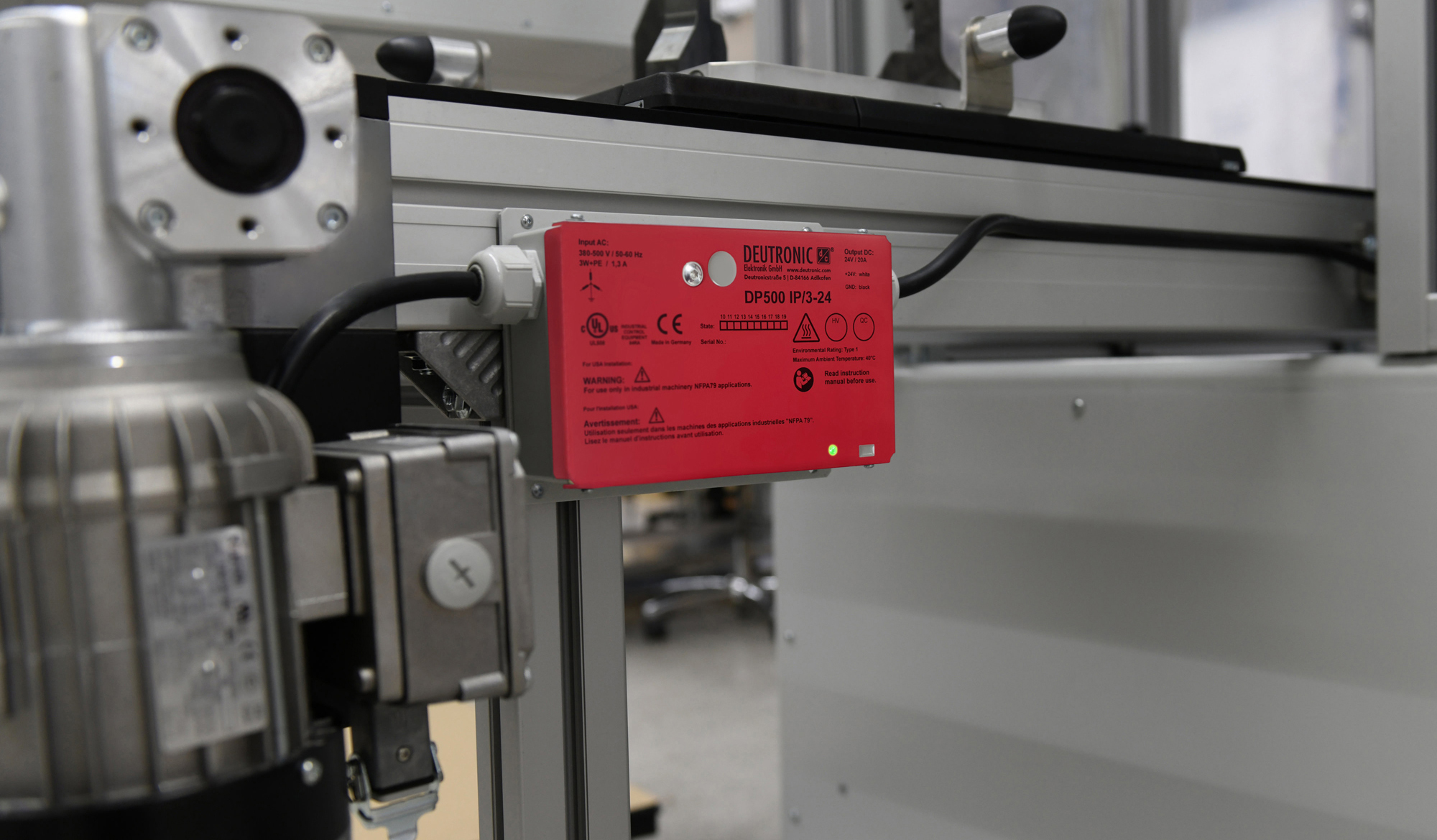

DP500IP 3AC

  • 500 Watt
  • Input 380–500V 3AC (wide range)
  • Active-PFC
  • Electrical safety: EN61204-7, EN 50178
  • Certifications: UL508 listed, enclosed type (E204957) CSA C22.2 No. 107.1-01
  • EMC: EN55011 Class B, EN61000-6-2
  • Extensive protection for power output: short circuit, no-load, overvoltage, overtemperature
  • Very low stand-by-power, high efficiency
  • No inrush current

DP500IP 1AC

  • 500 Watt
  • Wide range input (100–240VAC)
  • Active-PFC
  • Electrical safety: EN61204-7, EN 50178
  • EMC: EN55011 Class B, EN61000-6-2
  • Extensive protection for power output: short circuit, no-load, overvoltage, high temperature
  • Low stand-by-power
  • No inrush current
  • High transient robustness
  • High-precision output voltage

D-IPS1001C

  • For control cabinet installation (TS35 rail according to EN 60715)
  • Electrical safety: EN61010-1 / -2-201, EN62368-1, EN60204-1
  • EMV: EN55032, EN61000-6-2, EN61000-6-3
  • Wide range input 115VAC/230VAC
    (90-264VAC)
  • Programmable laboratory power supply
    U=0-Vmax
  • Multifunctional analog interface
    0-10V/0-20mA

D-IPS501C

  • For control cabinet installation (TS35 rail according to EN 60715)
  • Electrical safety: EN61010-1 / -2-201, EN62368-1, EN60204-1
  • EMV: EN55032, EN61000-6-2, EN61000-6-3
  • Wide range input 115VAC/230VAC
    (90-264VAC)
  • Programmable laboratory power supply
    U=0-Vmax
  • Multifunctional analog interface
    0-10V/0-20mA

DP30UP

  • 30 Watt
  • Ultra-Low Standby Power 60mW
  • High efficiency
  • Worldwide applicable, AC/DC wide range input 100–240V
  • Reduced Inrush current
  • Electrical safety acc. to EN61558-2-16, EN60335; EN61204-7
  • EMC acc. to EN61204-3, EN55011 class B, EN61000-6-2
  • Protection class 2 (no protective earth)
  • Wide working temperature range (-25…+85°C)

DP18UP

  • 18 Watt
  • Safety acc. to EN61204-7, EN60335
  • EMC acc. to EN61204-3, EN55011 class B, EN61000-6-2
  • Protection class 2 (no protective earth)
  • Smallest design (ø 53 mm)
  • Worldwide applicable, AC/DC wide range input
  • Wide working temperature range (-25…+70°C)
  • Reduced Inrush current
  • Connect more devices to one automatic circuit breaker

DP12UP

  • 12 Watt
  • Safety acc. to EN61204-7, EN60335
  • EMC acc. to EN61204-3, EN55011 class B, EN61000-6-2
  • Protection class 2 (no protective earth)
  • Smallest design (ø 53 mm)
  • Worldwide applicable, AC/DC wide range input
  • Wide working temperature range (-25…+70°C)
  • Reduced Inrush current
  • Connect more devices to one automatic circuit breaker

ETC70H

  • 70 Watt
  • Wide range input
  • Extensive Protection
    (e.g. short circuit / no-load / overvoltage protected)
  • CEC and Energy Star Level VI compliant
  • EN61000-6-1 and EN61000-6-3 compliant
  • Safety class I
  • Isolation voltage 4 kV
  • High efficiency

ESC15H

  • 15 Watt
  • Wide range input
  • Extensive Protection
    (e.g. short circuit / no-load / overvoltage protected)
  • DOE Level VI and CoC Tier 2
  • EN 55022 group I class B
  • Safety class II
  • Isolation voltage 3 kV
  • Option: Mains Plug Versions USA, AUS, UK
