SmartCharger

  • Designed for Pb and LiFePO4 batteries
  • Adaptive and dynamic charge algorithm and monitoring algorithm
  • Optimised usability
  • Extensive protection and self-protection functions

DBL800-14

  • Use as battery charger, power supply and motor vehicles energy supply in buffer mode (support during diagnosis / flash programming)
  • Suitable for lead acid, gel, AGM, fleece and lithium-ion batteries
  • Extensive protection functions and self-protection functions
  • Short circuit and reverse polarity protection
  • Electrical safety – certifications: EN60335, EN61010, UL1236
  • Utilized and approved by well known automotive manufacturers

DBL800-58-M

  • 100% on board safety, protection of
    on-board electronical system / airbag
  • Suitable for lead acid, gel, AGM, fleece and lithium-ion batteries
  • Use as battery charger and power supply
  • Extensive protection functions and self-protection functions
  • Short circuit and reverse polarity protection
  • Protection against defective batteries

DBL1200-14

  • Use as battery charger, power supply and motor vehicles energy supply in buffer mode (support during
    diagnosis / flash programming)
  • Extensive protection functions and self-protection functions
  • Short circuit and reverse polarity protection
  • Electrical safety: EN61010-1, EN60335-1, EN60335-2-29
  • Certifications: UL60950-1, CSA C22.2 No.60950-1-07
  • Utilized and approved by well known automotive manufacturers

DBL1200-28

  • Use as battery charger, power supply and motor vehicles energy supply in buffer mode (support during
    diagnosis / flash programming)
  • Extensive protection functions and self-protection functions
  • Short circuit and reverse polarity protection
  • Electrical safety: EN61010-1, EN60335-1, EN60335-2-29
  • Certifications: UL60950-1, CSA C22.2 No.60950-1-07
  • Utilized and approved by well known automotive manufacturers

DBL1600-14

  • Extensive protection functions and self-protection functions
  • 100% qualified for motor vehicles on-board electronic system / airbag
  • Use as battery charger, power supply and motor vehicles energy supply in buffer mode (support during diagnosis / flash programming)
  • Electrical safety – certifications: EN60335, EN61010, UL1236

DBL1200/3W-14-B-HAN

  • No inrush current – optimized for use within industrial manufacturing lines
  • 100% qualified for motor vehicles on-board electronic system / airbag
  • Use as battery charger, power supply and motor vehicles energy supply in buffer mode (support during diagnosis / flash programming)
  • Electrical safety – certifications: EN60335-1, EN60335-2-29, EN61010, EN62233, UL1236

DBL1600/3W-14-B-HAN

  • No inrush current – optimized for use within industrial manufacturing lines
  • 100% qualified for motor vehicles on-board electronic system / airbag
  • Use as battery charger, power supply and motor vehicles energy supply in buffer mode (support during diagnosis / flash programming)
  • Electrical safety – certifications: EN60335-1, EN60335-2-29, EN61010, EN62233, UL1236

DBL1800/3W-14-B-HAN

  • No inrush current – optimized for use within industrial manufacturing lines
  • 100% qualified for motor vehicles on-board electronic system / airbag
  • Use as battery charger, power supply and motor vehicles energy supply in buffer mode (support during diagnosis / flash programming)
  • Electrical safety – certifications: EN60335-1, EN60335-2-29, EN61010, EN62233, UL1236

DBL2250-3000/3W

  • 100% qualified for motor vehicles on-board electronic system / airbag
  • Use as battery charger, power supply and motor vehicles energy supply in buffer mode (support during diagnosis / flash programming)
  • Extensive protection functions and self-protection functions
  • Short circuit and reverse polarity protection

DBL1200HV

  • Automatic detection of the number of cells of the battery module
  • Identification of a battery module on different resistance encodings
  • Single cell voltage monitoring
  • Cell temperature monitoring
  • Detection of defect cells

D-IBM2900

  • Ensuring an uninterrupted power supply in the industrial plant area, with simultaneous downtime reduction
  • Backup solution to avoid delays in the industrial environment
  • Mobile loading unit enables flexible supply in vehicle fleets or in rework stations
  • Flexible use in the context of continuous improvement processes or short-term adaptations
  • Autonomous battery system with internal BMS (single cell monitoring) and emergency stop

High voltage mobile charging station DBL11.22-HV-LW

  • Flexible use
  • Charging AC type 2, 11-22kW
  • Robust construction (metal housing, IP54)
  • Powerful quick loader in compact design

E-BVI Battery Guard

  • Battery voltage indicator for 12VDC lead acid vehicle batteries
  • Robust construction, compact housing
  • Easy mounting on the windshield of the vehicle using suction cup
  • Extremely low power consumption

ESM5 Solar Charger

  • Solar module with integrated charge controller for 12VDC lead-based rechargeable batteries
  • Processor controlled charging
  • Robust solar module
  • Aluminium / plastic sandwich carrier plate
  • Only 5 mm thick (without charge controller)

Transport system

  • Transport system (without charger)
    For one battery charger (standard version)
    Type: MPC4 (f.e. DBL1600)
  • Dimensions transport system (HxWxD): 100(202)x51x62 cm

Transport system for B-Housing version

  • Transport system for B-Housing version
    (without charger)
    For one charger DBL B-Housing
  • For mounting external signal lamp 107492/x with mounting kit 140591/x prepared

Transport system multifunctional

  • Without accessories
  • Transport system with mounting device for two DBL in B housing and signal lamps (incl. cable drum 25 m)
  • Transport system with mounting device for two DBL2250/3W resp. DBL3000/3W and signal lamps
  • Transport system with mounting device for D-IBM2900 energy buffer system as well as two DBL/3W or -B and signal lamps

Wallmount

  • For one charger (standard version)
    Type: MPC4 (f.e. DBL1600)

Wallmount with cable holder

  • Wallmount with cable bracket incl. mounting and fastening materials for DBL series in B-Housing Version

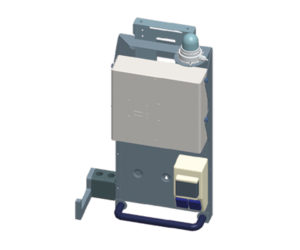

Basic carrier / Rework station

  • Basic carrier for DBL MPC4 chargers, B-Housing Version
  • Incl. EU socket combination – not mounted!
  • Other socket combination on request

Cable spring balancer with locking device

  • Load 1,5…3 kg
  • Including conductor holder for round cables

D-ILA-F10A1 – EMC Filter for DBL-Series

  • Adaptive filter box to meet ILA EMC requirement on DBL devices
  • Retrofittable on existing DBL devices
  • Suitable for DBL1050-14, DBL1200-14 and DBL1600-14

External Signal Lamp

  • External signal lamp for charging computers
  • For clear signaling of the charging status on production lines and workshops
  • Type: MPC4 (f.e. DBL1600)

D-ADAPT-SBB2X25 T-Adapter

  • D-ADAPT-SBB2X25 T-Adapter
    The T-Adapter enables the utilisation of the further functions of the 25 pole DBL interface while at the same time the external signal lamp (DBL-SIG-LR) is connected to the DBL.
    Type: MPC4 (f.e. DBL1600)
  • D-ADAPT-SB25 Data Cable
    Data cable male-female, 25 pole / 1.8 m

Mains cables

  • Mains cable for Europe
  • Mains cable for USA
  • Mains cable for Australia
  • Mains cable for United Kingdom
  • Mains cables international (4 set)
  • Mains cables international (3 set)

Charging cable

  • Charging cable
    16 mm² / 100 m reel
    Cable for battery charger
  • Standard
  • Standard variants
  • Charging cable for Smartcharger SC300/SC500

Cable clamps 200A

  • Cable clamps 200A
    Completely isolated
    For professional applications
    Standard red and black
  • Set angled
    red and black

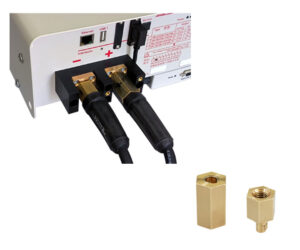

Charging cable coupling

  • Charging cable coupling
  • Welding connector
  • Welding plug/Charging cable coupling set

Mains connection kit

  • Mains connection kit
    For DBL3000/3W and DBL5500/3W

HARTING-plug

  • HARTING-plug for all DBLxxx/3W HAN-versions (mains connection)

Spare Parts

  • Rubber foot for DBL800
  • Hinged feets frontside
  • Carrying handle for product groups

D-Tool Service MPC4

  • Software for fast and easy update of customer-specific firmware (including parameter) via RS232 or USB. Link available via e-mail.

D-Tool Parameterization tool MPC4

  • For PC-based parameterization of DBL MPC4 charging computers and configuration of D-ADAPT-MPC4 network adapter via RS232/USB or Ethernet
