Mating connector DR/DVC series

  • For the device types:
    DR25N, DR100(N), DR125(N), DR150N, DVC75, DVC100, DVC125, DVC150
  • Scope of delivery:
    4 pole MATE-N-LOK housing
    4 crimp contacts (Socket version for cable cross-section 1.5–2.5 mm)

Mating connector DR350

  • For the device type:
    DR350
  • Scope of delivery:
    4 pole MATE-N-LOK housing
    4 crimp contacts (Socket version for cable cross-section 3–6 mm)

Mating connector DVC250/251

  • For the device types:
    DVC250, DVC251
  • Scope of delivery:
    6 pole MATE-N-LOK housing
    6 crimp contacts (Socket version for cable cross-section 1.5–2.5 mm)

Mating connector DVC251/250 pre-assembled

  • For the device types:
    DVC251/250
    1 m cable length
  • Scope of delivery:
    6 pole MATE-N-LOK mating connector and 1 m connection cable as single strands, cable ends open (with ferrules)

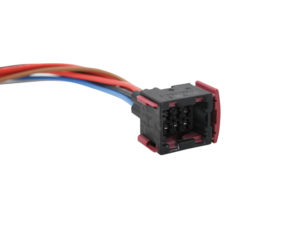

Mating connector DVC153/DVC453

  • For the device types:
    DVC153, DVC453
  • Scope of delivery:
    1x mating connector
    6x contact pins
    6x gasket

Mating connector DVC453-48/80 pre-assembled

  • For the device type:
    DVC453-48/80-24
    3 m cable length
  • Scope of delivery:
    Mating connector TE Connectivity AMP
    and 3 m connection cable

Mating connector DVC953 pre-assembled

  • For the device type:
    DVC953
    2 m cable length
  • Scope of delivery:
    Power Lok connection
    Twin cable Ölflex 2×6 mm²
    Open cable ends

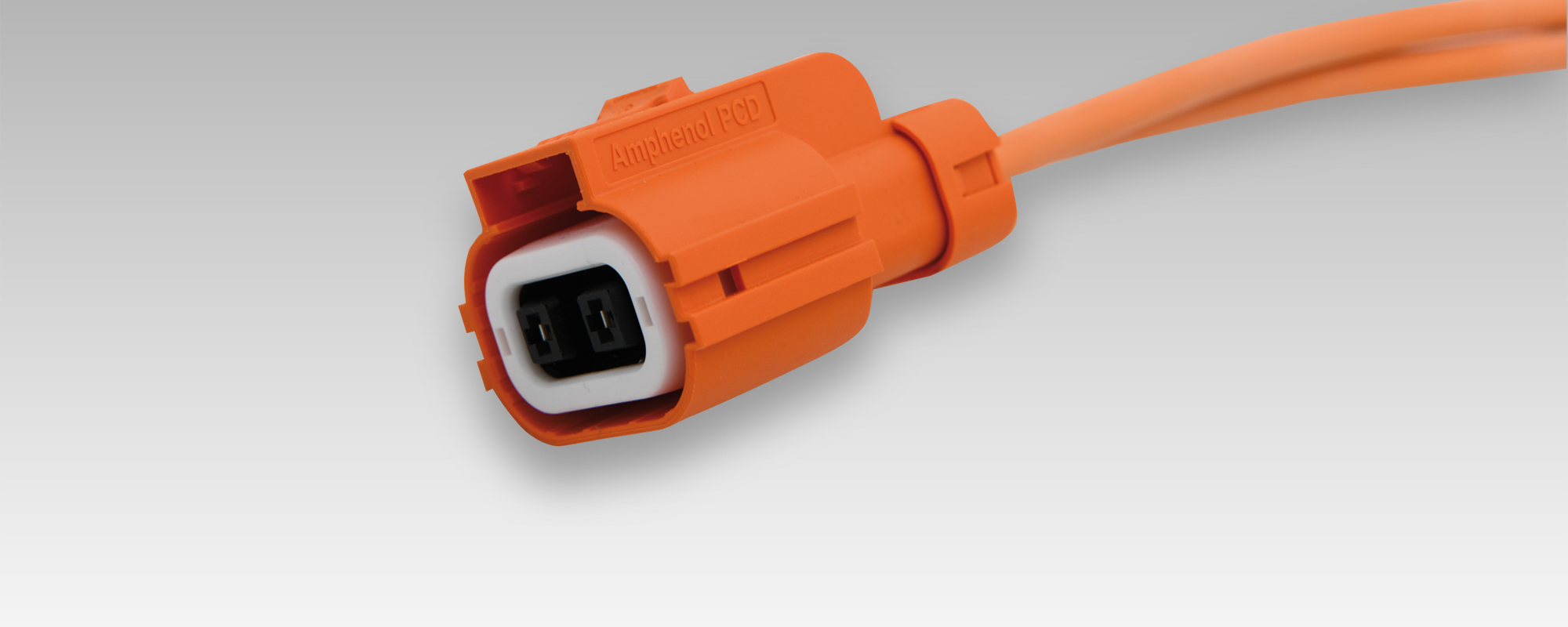

HV mating connector DVCHx3 pre-assembled

  • For the device types:
    DVCHx3
    5 m cable length
  • Scope of delivery:
    2 pole HV connector AMPHENOL
    Excel Mate Eco HVSL282 06 2 A 104
    HV cable (4 mm², shielded single wires)

HV mating connector DVCH3000 pre-assembled

  • For the device type:
    DVCH3000
    5 m cable length
  • Scope of delivery:
    2 pole HV connector TE Connectivity HVA280

Application specific cooling systems

  • e.g. heat sink or liquid cooled cooling plate
    On request

D-ADAPT-CAN USB/CAN-ADAPTER

  • For device types:
    DVCx3, DVCHx3/Adapter kit
  • Scope of delivery:
  • 1x D-ADAPT-CAN USB/CAN-ADAPTER
  • 1x ServiceTool OCT
  • 1x Accessories-SET
