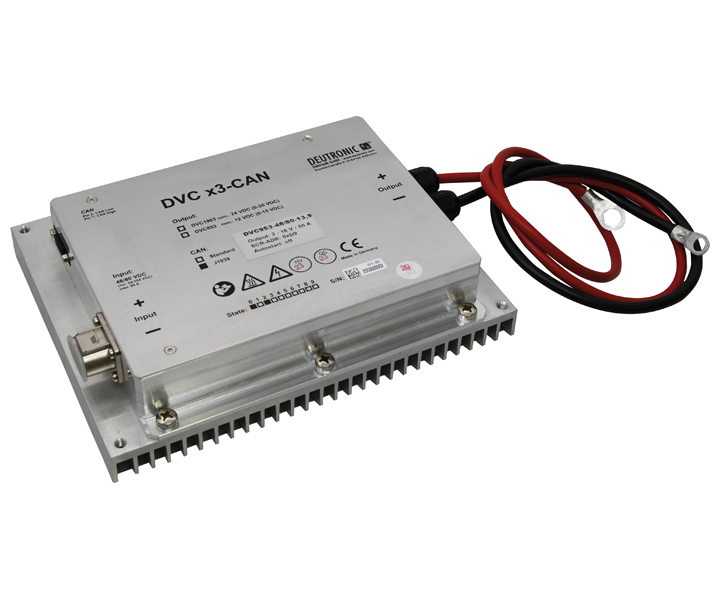

DVC953
Due to the fact that planar devices are used, it is possible to achieve a high power density combined with a very flat design.
- Wide range input
- Galvanical isolated switching regulator
- Power range up to 1280W
- High efficiency – up to – typ. 93%
- Short-circuit, no load and over temperature protection
- IP-protection class IP67
- Parallel connectable
- Particularly flat and compact design
- CAN J1939 (controllable output voltage and current)
Specifications
| Typ | Input [V] | Output [V] | Output [A] | Cat. No |
| DVC953-48/80-13,8-CAN-Auslauf / phased out | 48-80VDC | 13,8VDC | 80A | 105185/x/yyy |
| DVC953-48/80-13,8-CAN-v2 | 48-80VDC | 13,8VDC | 80A | 105167/x/yyy |
Download (en)
| Filelable | File01 |
| Data sheet phased out | DVC953_ds-phased-out |
| Data sheet v2 | DVC953_ds-v2 |
| Installation and Safety Instructions | DVC-DVCH-DR-Installation-and-Safety-Instructions |
| Product Flyer | DVCx3-Series-DCDC-converter |
| Cooling systems Flyer | Cooling-systems-DC-DC-Converter |
| Accessories catalogue | Transportation-Logistics-Accessories |
Download (de)
| Filelable | File01 |
| Datenblatt Auslauf | DVC953_db-Auslauf |
| Datenblatt v2 | DVC953_db-v2 |
| Installations- und Sicherheitshinweise | DVC-DVCH-DR-Installations-und-Sicherheitshinweise |
| Produktflyer | DVCx3-Serie-DCDC-Wandler |
| Kühlsystemeflyer | Kühlsysteme-DC-DC-Wandler |
| Zubehörkatalog | Transportation-Logistics-Zubehör |
